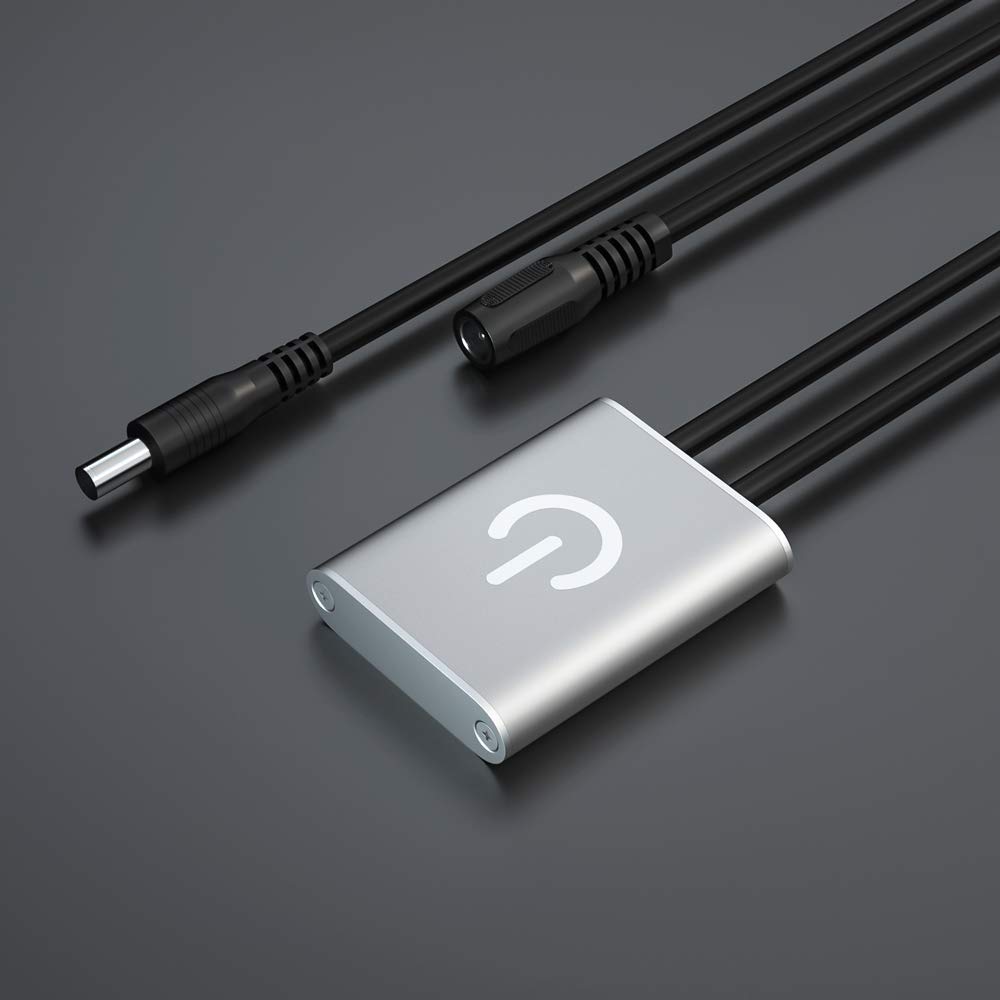

Sensky 12V 24V DC Touch On/Off Dimmer Switch with Brightness Adjustment - LED Cabinet Light, Strip Light & Rigid Light Bar Controller - Perfect for Home, Office & RV Lighting Control

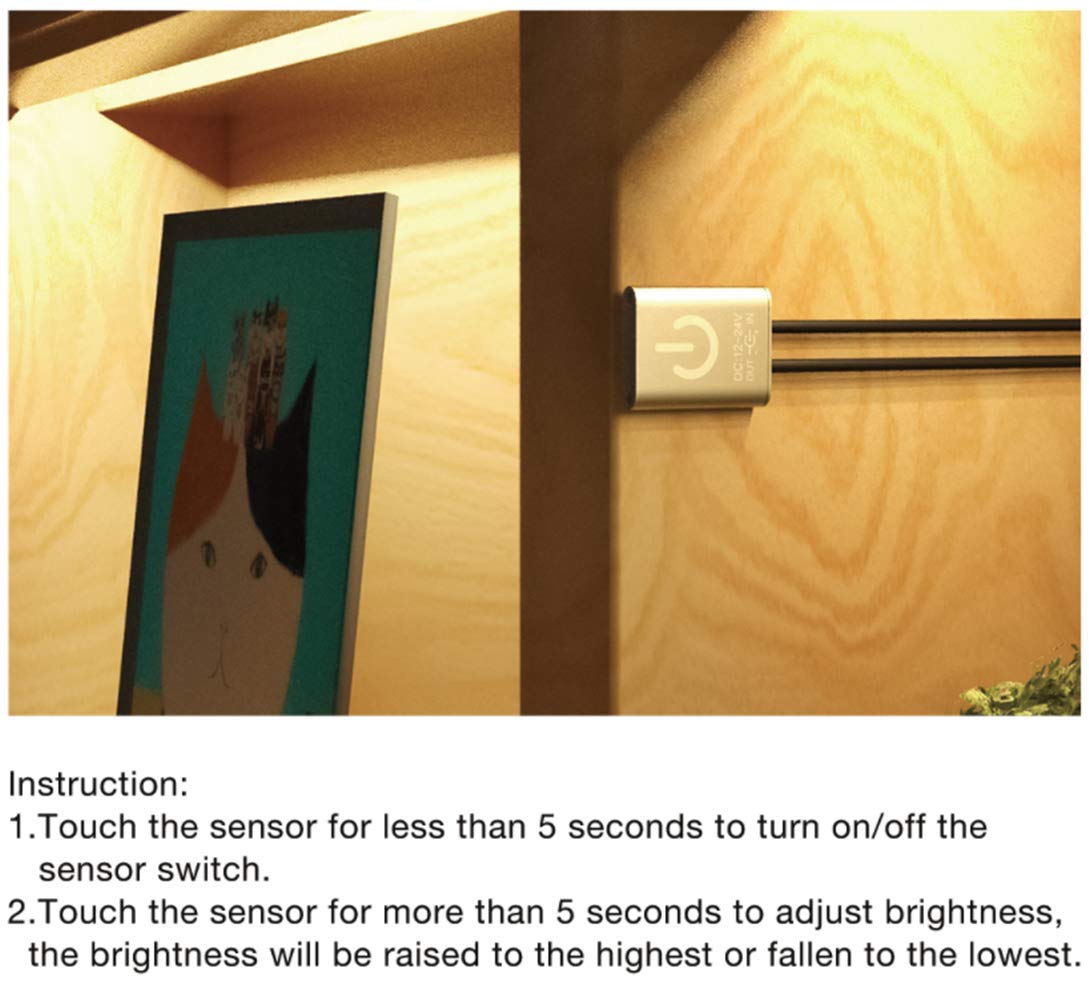

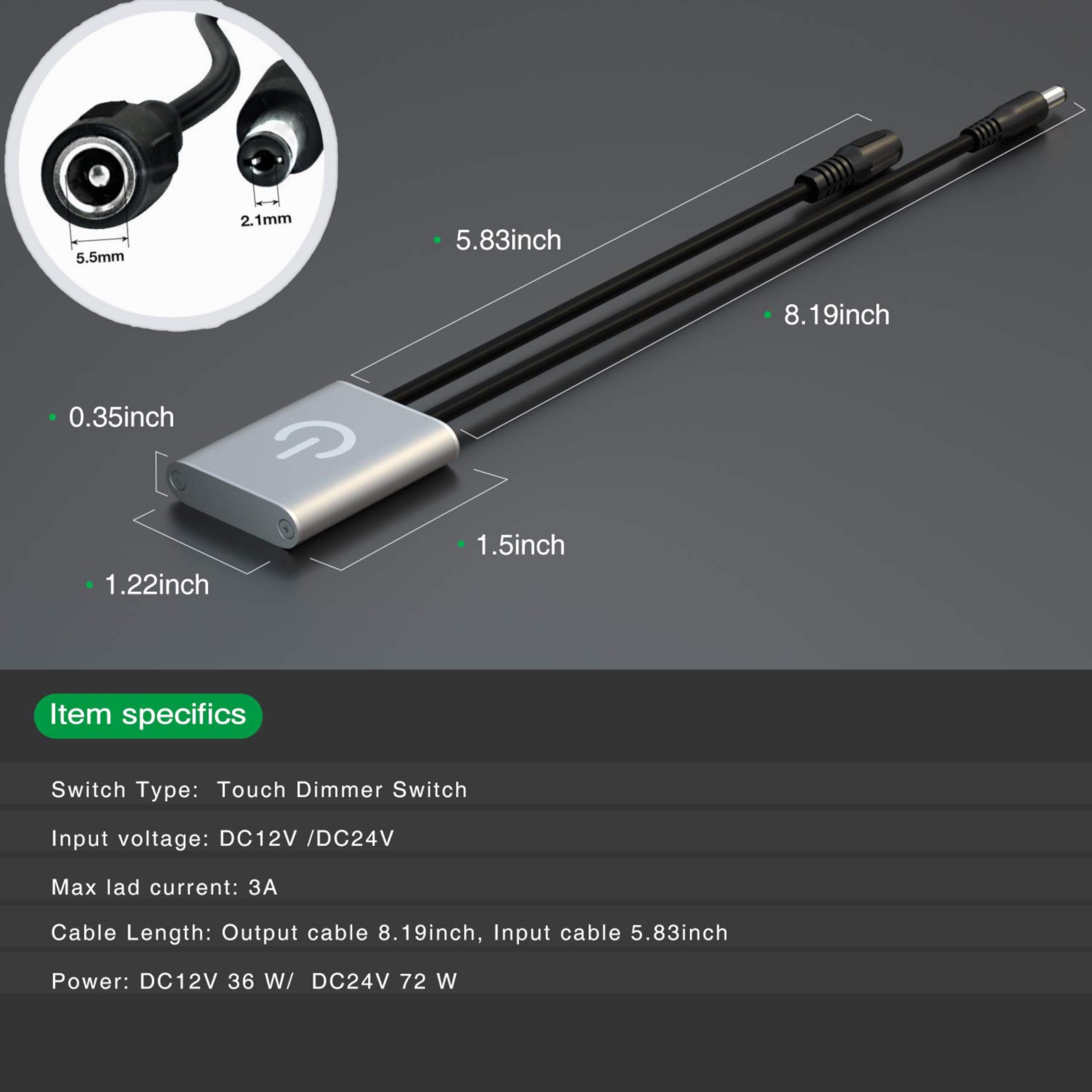

The advantage of brightness adjustment touch dimmable switch: a. Let you do not worry about the brightness of your cabinet light/strip light. When you purchase a roll of stip light, some you think it’s too bright, or think it’s too dim. b. Or when you need the strip light used in different place, but you need different brightness to fit the place. Now ours is your best choise. You can adjust the brightness of the cabinet light/strip light. Specifications: Input Voltage: DC 12V /DC 24V Output Voltage: DC 12V /DC 24V Max Load Current: 3A Connector: 5.5*2.1mm DC connector Cable Length: Input cable 5.83in, output cable 8.19in Switch Type: Touch Dimmer Switch; Touch On/Off Switch Features: Touch Switch Material: Alloy Instruction: 1. The finger touches dimmer metal body; 2. Short touch to turn on/off; 3. Keep touching to adjust the brightness, the brightness will be raise to the highest then fallen to the lowest. Description: Touch dimmer switch, It adopts capacitance touch technique; switch on/off and dimming function can be realized by touching. It directly driven led lighting products, such as led cabinet lights, led rigid bar, led strips and led panel light. It can also be used as on/off touch switch. Other function if you need: a. Touch Dimmable Switch + BS010series Motion Sensor Switch(not included, separetely sold in our store) b. Touch Dimmable Switch + BS011 Cabinet Sensor Switch(not included, separetely sold in our store) c. Touch Dimmable Switch + BS012 Hand Waving Sensor Switch(not included, separetely sold in our store) Please make sure the touch dimmable switch is “On” state, otherwise the other sensor switch won’t work normally.

Input Voltage DC 12V/DC 24V Max Load Current 3A

Touch Switch ON/OFF The finger touches the item, the touch time is less than 5 seconds, it is on/off switch function for led light.

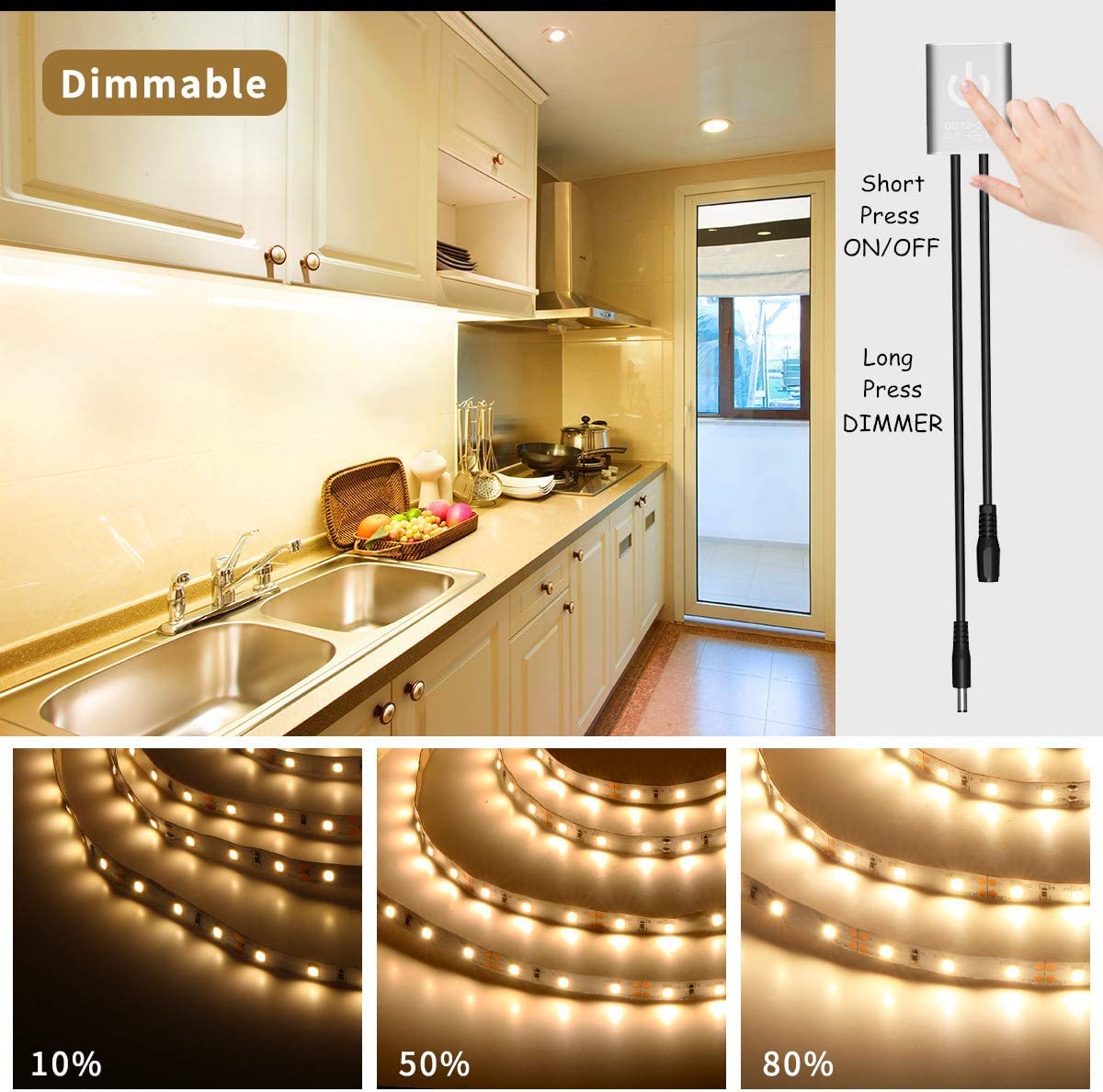

Touch Dimmer Switch Touching the item, when the touch time is more than 5 seconds, it is dimming function, the brightness will be raise to the highest or fallen to the lowest.

Easy to Install The touch dimmer switch comes with adhesive tape for mounting the switch to any clean, flat surface.(Please don't stick on the place with metal)

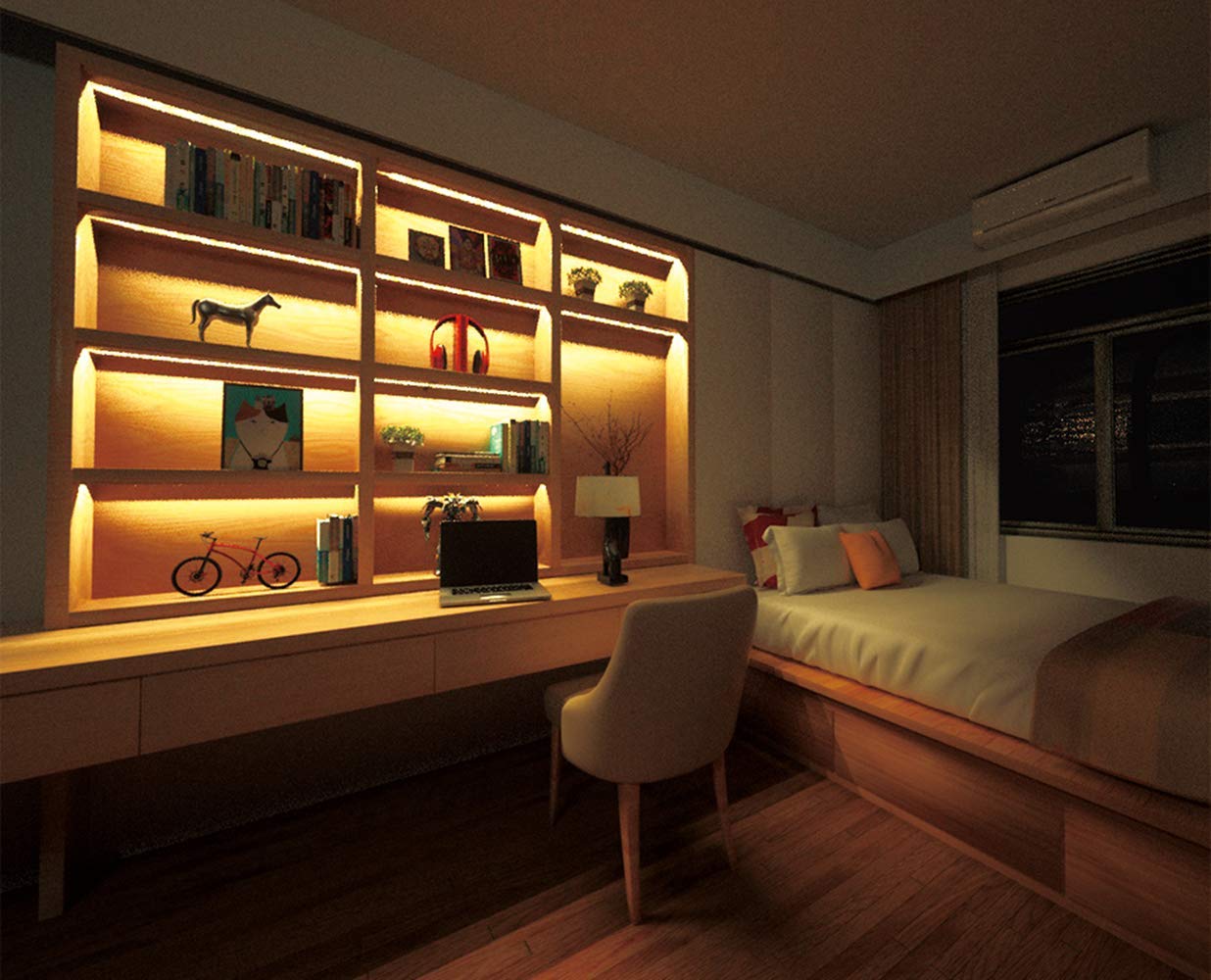

Widely Used It directly can drive led lighting products, such as led cabinet lights, led rigid bar, led strips and led panel light.
